Armatherm application

Foundation Wall Thermal Bridging Solution

Thermal Bridging at foundation wall transitions creates heat loss at the foundation perimeter. This reduces the exterior wall’s effective R Value. Foundations are part of a buildings’ thermal envelope. The intersection at a slab on grade to foundation wall and exterior wall to foundation transition are both areas where heat flows out of a building. This is due primarily to non-continuous insulation details.

Find out more about Armatherm’s solutions from our FAQ page.

ARMATHERM™
500 Benefits

  • Essential for continuous insulation
  • Resistant to freeze thaw cycles
  • Simple installation technique
  • Custom size to match masonry depths
Bre-logo

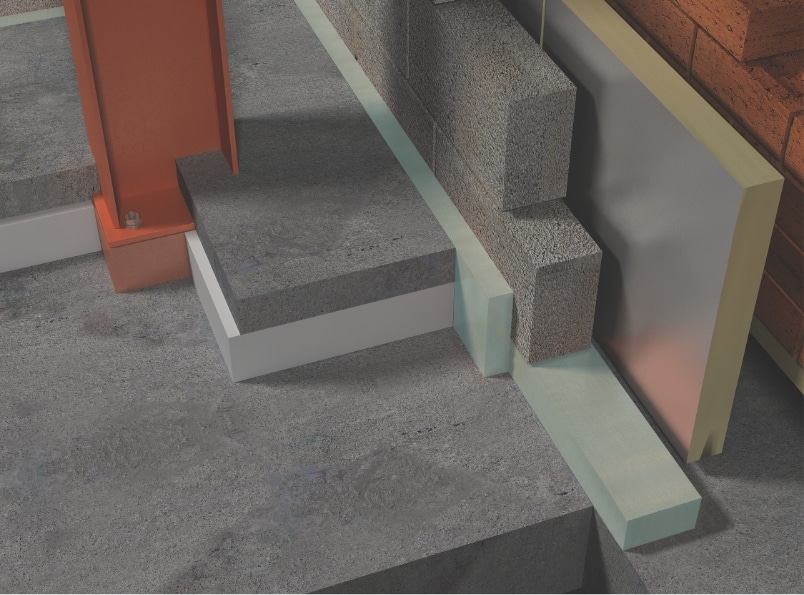

Foundation Wall Thermal Break

The linear transmittance (heat loss) at the base of the foundation wall can be reduced by as much as 60% by using an efficient, structural thermal break. Armatherm™ 500 is a load bearing, thermal break material manufactured in several densities to provide a range of load capacities with R values as high as R 3.8 per inch.

Thermal bridging at a foundation wall transition can be reduced further by increasing the length of the slab insulation.

Downloads

pdf638kB

Armatherm™ 500 Datasheet

pdf385kB

Armatherm™ 500 Submittal Sheet

pdf1MB

Armatherm™ Thermal Bridging Solutions Catalogue
