Armatherm application

Column Base Thermal Bridging Solution

Internal steel columns traditionally extend through the building envelope floor slab and insulation at their base. In low temperature buildings such as freezer rooms and cold storage facilities, this creates a thermal bridge and point transmittance (heat loss) at the steel column base. This is also the case for exterior columns which support floors or roof overhangs. The column to roof connection interrupts the continuous insulation creating heat loss due to thermal bridging.



ARMATHERM™
500 Benefits

  • Critical to maintain CI across ground slab
  • Designed to withstand high column loads
  • Custom thicknesses available
  • Does not wick moisture maintaining thermal performance
  • Excellent resistance to long term creep
  • Direct alternative to hardwood isolation block
Bre-logo

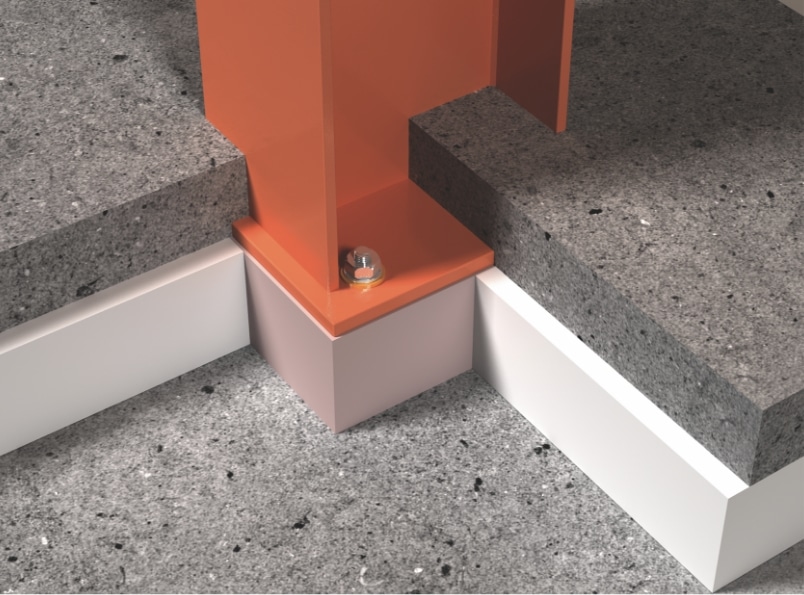

Column Base Thermal Break

Armatherm™ 500, structural thermal break material can support and transfer column loads while providing an effective thermal break at the column connection. With R values as high as R 3.8 per inch, Armatherm™ 500 can help to meet the ASHRAE requirement for continuous insulation as well as the baseline insulation requirements for floors in refrigerated storage facilities.

Downloads

pdf638kB

Armatherm™ 500 datasheet

pdf385kB

Armatherm™ 500 Submittal sheet

pdf1MB

Armatherm™ Thermal Bridging Solutions Catalogue
